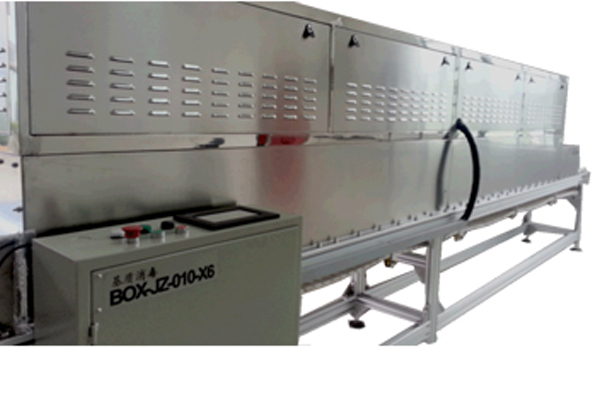

AIINSSSubstrate Disinfection EquipmeFixed matrix sterilizer
Usage Profile
Suitable for the substrate and soil disinfection of seedling or cultivation, advantageous to kill all kinds of weeds, fungi, nematodes and so on, can effectively solve soil-borne diseases and restubble problems.
Product Features
With mirror stainless steel casing and aluminum alloy body frame.
PLC control, touch screen operation, adjustable data and formula.
Microcomputer temperature controller, accurate and reliable temperature control.
Special waveguide generator, switch or oil - cooled power supply.
Equipped with an independent temperature limit alarm system, the temperature exceeding the limit will be automatically interrupted to ensure the safe operation of the experiment without accidents (optional)
frequency conversion pipeline control, high efficiency, low energy consumption, promote energy saving.
It has a printer or RS485 interface, which can be connected to the printer and computer, and can record the changes of temperature parameters (optional)
Technical indicators
Temperature control range 40-100℃ Temperature resolution 1℃
Constant temperature fluctuation, high temperature ±0.5℃, low temperature ±1.0℃
Temperature uniformity ±2.5℃
Supply voltage 380V 50Hz
Working environment temperature -20~40℃
Power input 24-100kW
External dimensions W×D×H(mm) 4000, 7000, 10000×600×1500
