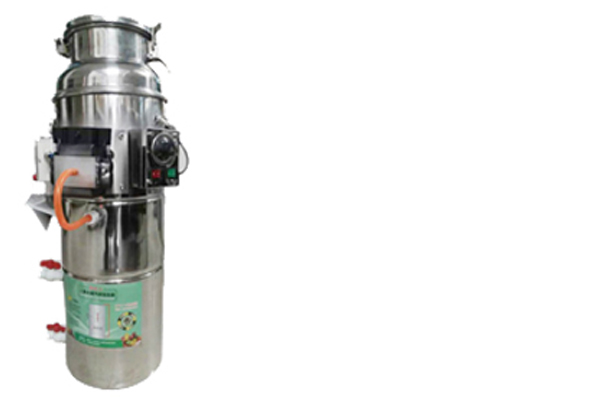

Product introduction

Seedling breeding base, intelligent greenhouse, disinfection storage, pest control fertilizer) directly into the reaction container (do not add water) control, this product is based on flowing water as a regulator, ammonium bicarbonate (referred to as through the air pump discharge turn on red, green switch, reaction automatically, carbon dioxide gas.

Technical parameters

Power consumption: 1KW/ hour AC220V.
Water consumption: 8 litres/hour
Raw materials: ammonium bicarbonate (chemical fertilizer for short)3 kg/h,
Gas generation: 1.1 kg 800-1000 PPM

Usage

Water is injected before use by opening the water injection valve and the exhaust valve, and closing the drainage valve. When the exhaust valve releases water, water injection is completed. Note: each injection is about 20 kg. Close all valves after filling. Ammonium bicarbonate is directly added to the reaction vessel (without water). Turn on the red and green switches successively, and the reaction will proceed automatically. Carbon dioxide gas will be discharged through the air pump. The reaction process needs to stop halfway, you can turn the temperature control switch counterclockwise until you hear music, the air pump will continue to work, at least 10 minutes after the power off. Carbon dioxide gas can be imported through the pipe to the use area. If the use area is large, holes can be punched in the pipe to evenly spread the carbon dioxide gas.

Notes

The power supply must be connected with leakage protection device.● Ammonia water should be replaced with sub-new water each time the reaction stops.
