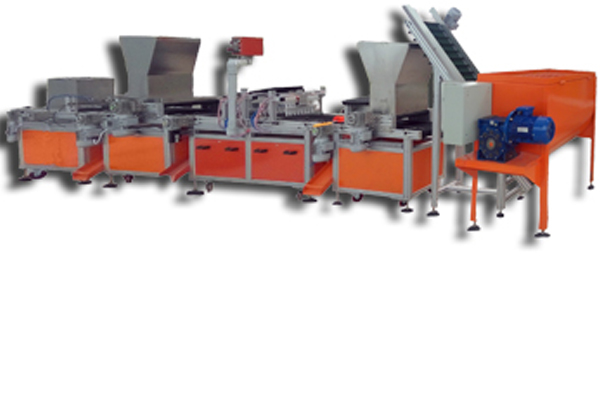

Purpose overview of the planter

It is suitable for seed, flower, flower, vegetable, tobacco, melon and fruit, medicinal material, grass and so on

Technical indicators

Sowing point plate 32-288 points
Use air pressure of 0.8 MP?
Seeds of 0.2-20mm can be sown
Conventional standardized round seed seeding accuracy is over 98%
380V supply voltage? 50 hz
Working environment temperature -20~40℃
Rated power: 800W
External dimensions W*D*H(mm)9000*1300*1700

Product Features

Main body of aluminum body and accessories, stainless steel screws
PLC programmable control, touch screen operation, data adjustable.
Automatic mixing, feeding, loading, positioning, caving, sowing, covering, watering, closing
German vacuum pneumatic system, pressure suction adjustable
Robot control precision mode
Equipped with independent limit fault alarm system, LED light emitting tube fault display
Change the cavity plate with different lattice number, and adjust the internal parameters with one key.

Our services are mainly focused on agricultural machinery, intelligent control, food machinery, industrial automation control and other industries. With the help of advanced platform system of industrial network and communication technology, we can realize complete solution for customers, namely from raw material formulation, production process, to the production automation of product transportation. We provide machinery manufacturing, electrical design, system complete sets, machinery manufacturing, on-site commissioning and other services.
